One Year Free Update EU SHIP TAX FREE Autel MaxiCOM MK808S-TS TPMS Scanner Complete TPMS Check/Activate/Relearn Services MX-Sensors Programming Full Systems Diagnostic Active Test

Product Description

2023 Autel MaxiCOM MK808S-TS MK808Z-TS TPMS Relearn Tool Support Sensor Programming and Battery Testing Functions

Product Introduction:

When it comes to ultra-portability, MaxiPRO MK808Z-TS is your perfect companion. Featuring a fast quad-core processor, MK808Z-TS offers maximum convenience and swift diagnosis. The intuitive user interface makes using the device effortless via a 7-inch LCD touch screen that displays at 1024 x 600 quality. Together with the ability to quickly read and clear Original Equipment Manufacturers (OEM) enhanced codes for TPMS module of the majority of the makes and models on the market, MP808TS provides you with superior special functions for TPMS services with ease.


Product Features:
NEW! Support active test and complete special functions
NEW！Compatible with Videoscope and MaxiBAS BT506 to perform Battery Analysis
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes and models
Exceptional OE-level system coverage for all electronic systems
Complete capabilities for codes, live data, ECU information, adaptation, matching, etc.
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
Automatic system and software updates with real-time push message notifications via Wi-Fi
Instant remote control tech support anytime, anywhere
Advanced TPMS diagnostics with DTC description
TPMS status, one step for complete TPMS health check
Activate 98% of all known TPMS sensors
Program AUTEL MX-Sensor
Comprehensive OBD relearn coverage
On-screen relearn procedure
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
Support forced DPF regeneration and adjusting injectors
Support battery registration and reset






Product Highlights:
【OE-Level System Diagnoses】 Autel scanner MK808Z-TS offers OE-level diagnoses for all electronic systems, covering 80+ US, Asian and European vehicle makes. The MK808Z-TS’ using experience is even better than the OE-level diagnostic scanner with more powerful functions.
【36+ Service Functions】Autel MK808Z-TS enjoys 36+ service functions on 98% vehicles, including Oil reset, Type/Pressure Selection, EPB, DPF, SAS, BMS, ABS Bleeding, IMMO, etc. As the upgraded version of MK808/MX808/MK808BT, it offers all-round special functions.

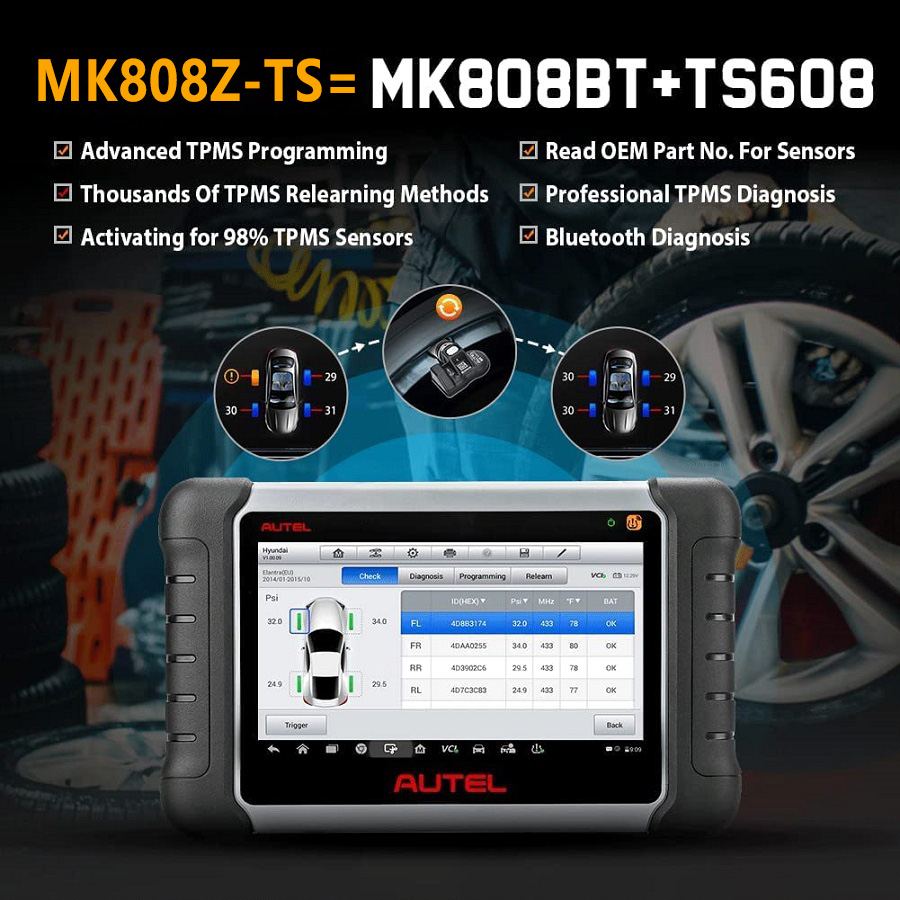

【Complete TPMS Services】 Same as Autel TS608, MK808Z-TS activate, relearn all known OEM TPMS sensors, read sensor data, and turn off the TPMS light. It retrieves the sensors’ OEM part No. in seconds and provides with 3000+ built-in relearn procedures.
【TPMS Sensor Programming】 TPMS tool MK808Z-TS offers 4 ways to program Autel sensors, which replaces 98% OEM sensors, clearing TPMS faults. MK808Z-TS can also add OEM TPMS module to clearly show tire pressures and help you better monitor the tire conditions.
【1 Year Warranty & 1 Year Free Software Update】Purchase it, MK808Z-TS offers 12 months warranty, and 1-year free online software update.



Product Specifications:


Recommended Use	Indoor
Operating System	Android 11
Processor	Rockchip RK3566
Memory	RAM 4G+ROM 64G
Display	7-inch LCD capacitive touchscreen with 1024 x 600 resolution
Connectivity	Mini USB 2.0 USB 2.0 Wi-Fi(2.4 & 5GHz) HDMI Type A Micro SD card (supports up to 64GB)
Sensors	Light sensor for brightness auto changing
Audio input/output	Input: N/A Output: buzzer
Power and Battery	3.7 V/5000 mAh lithium-polymer battery Charges via 5 VDC power supply
Tested Battery Life	Around 7 hours of continuous use
Battery Charging Input	5 V/1.5 A
Power Consumption	600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.	0 to 55°C(32 to 131°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Operating Humidity	5% - 95% non-condensing
Dimensions (W x H x D)	270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight	885 g (2.31 lb.)
Protocols	ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Package Includes:
1pc x MaxiPRO MK808Z-TS Tablet
1pc x USB External Power Adapter
1pc x USB Cable (for charging)
1pc x USB Cable (for test)
1pc x MaxiVCI Mini
1pc x USB External Power Adapter
1pc x User Manual
1pc x Quick reference guide
1pc x Carry case
1pc x Magnet

----------------------------------------------------------------------------------------------------------------------------------------
